Item #: 4024-03

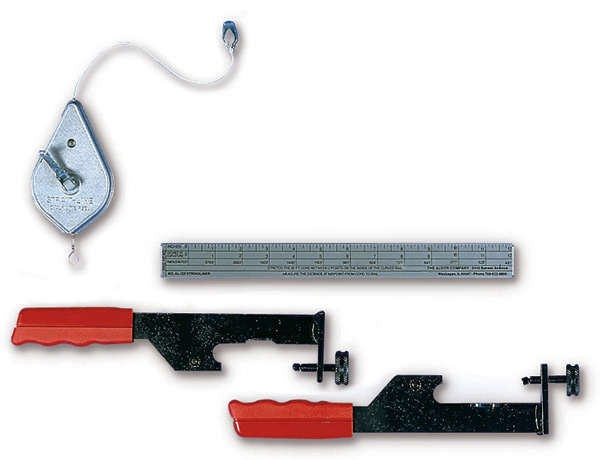

◾ Measure track curvature or visually judge the straightness of
◾ Steel paddles lock to rail head. The custom 12" ruler measures
the space between the rail head and the red-marked midpoint
of a 62 ft. cord.
◾ Each inch of space between rail and string equal one degree of
curvature. Accuracy of measurement is +/-4%.
Other subsidiary measuring points can be color-dotted on the 62 foot cord. By color-dotting, two different overall distances can be provided in one length of cord, each with its own mid-point. The string reel has a lockable payout/retrieval latch to lock string at any desired point.
Weight 5 lbs.
