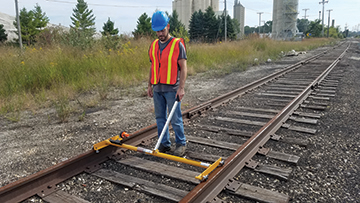

AL-102 Rolling Gauge Reader
Available from Aldon Company, Inc.
Product Details
Item #: 4022-10
◾ Measure up to 2 inches gauge variation while walking
down the track.
◾ Spring-action telescopic assembly expands and
contracts as gauge changes.
◾ Worker can read gauge while walking by looking down at
a lens and gauge scale.
◾ Steel roller bearings measure gauge at 5/8" below top of rail.
◾ Passes over rail joints but cannot roll through rail crossings
or switches.
◾ Clearance above rail: 1/8".
Weight 33 lbs.
